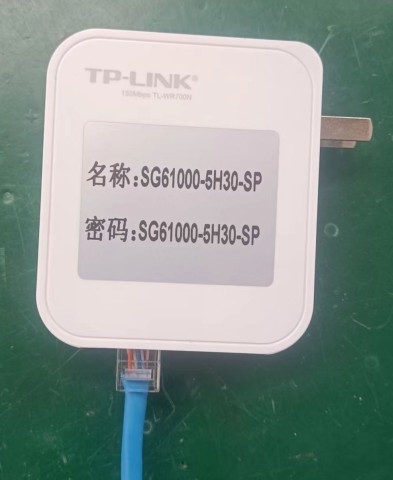

打开发生器附件盒取出里面的路由器,如下图：路由器和仪器的 LAN口 用网线 连接好。

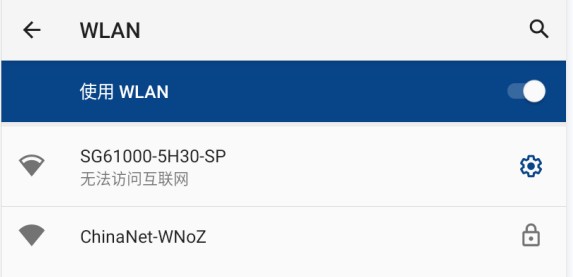

路由器和发生器接通电源后，打开发生器附件内的PAD,在设置界面内连接对应的WLAN名称。该WLAN是仪器发出的没有连接互联网。

名称和密码是一样的

WLAN连接示意图

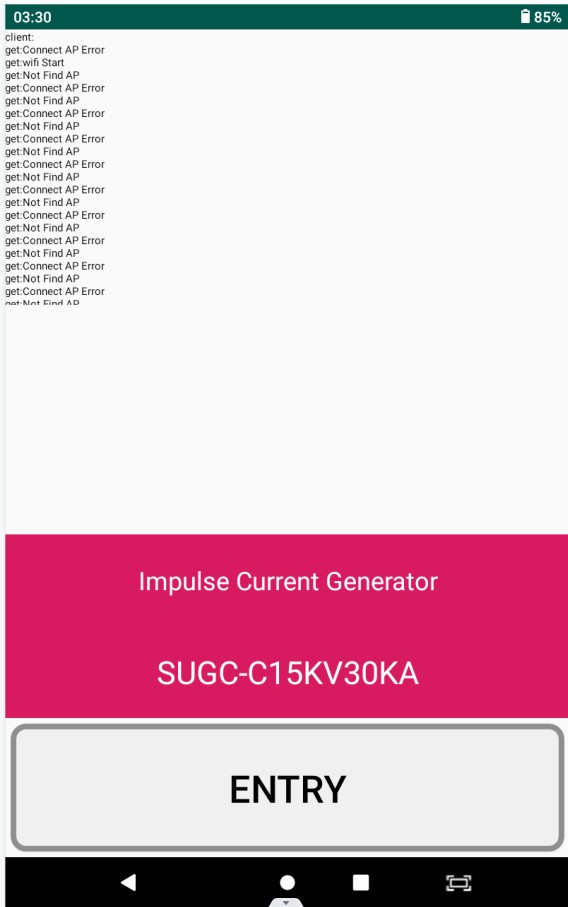

打开APP 点击测试软件APP图标③运行指示灯，进入参数设置界面。

③运行指示灯③运行指示灯如：上图所示。就可以点击进入测试界面进行电压的设置。

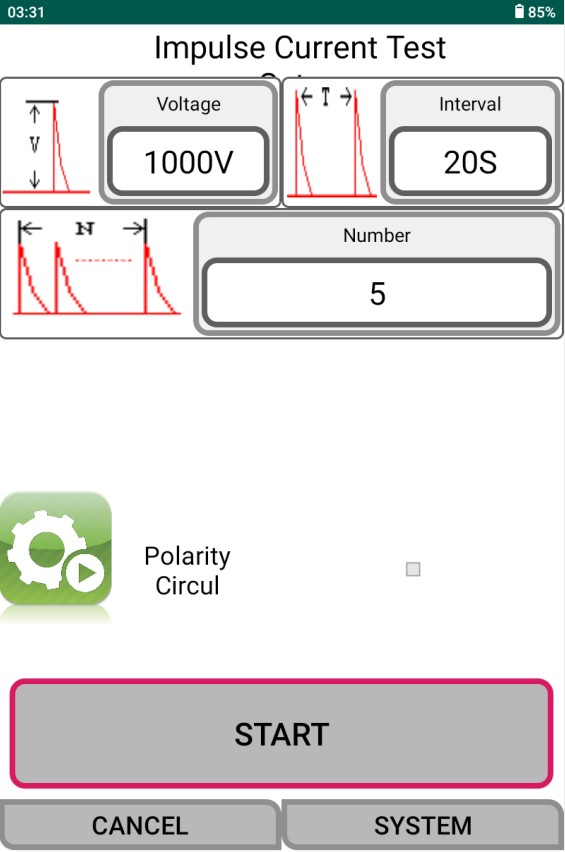

如下图所示：

点击进行电压设置

点击进行测试时间设置

点击进行放电次数设置

点击打 √ 进行自动正负选择

以上设置完成就可以点击进行测试了。
