光色电参数快速测试仪

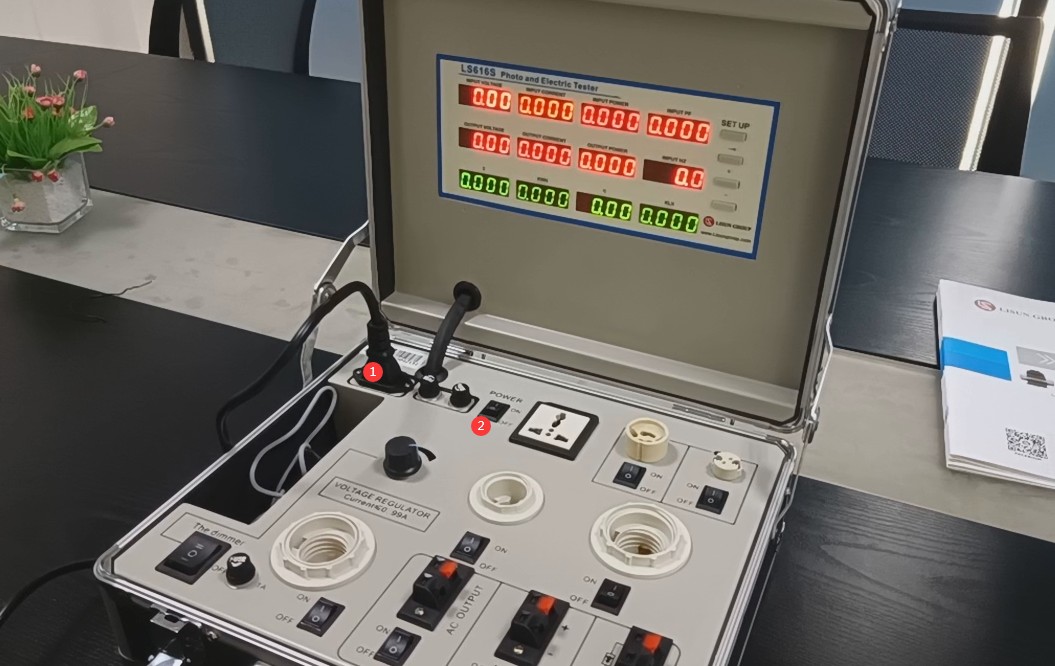

电源线接口，= 1 * GB3①请将设备连接至正确的电源。= 2 * GB3②然后将设备开机。

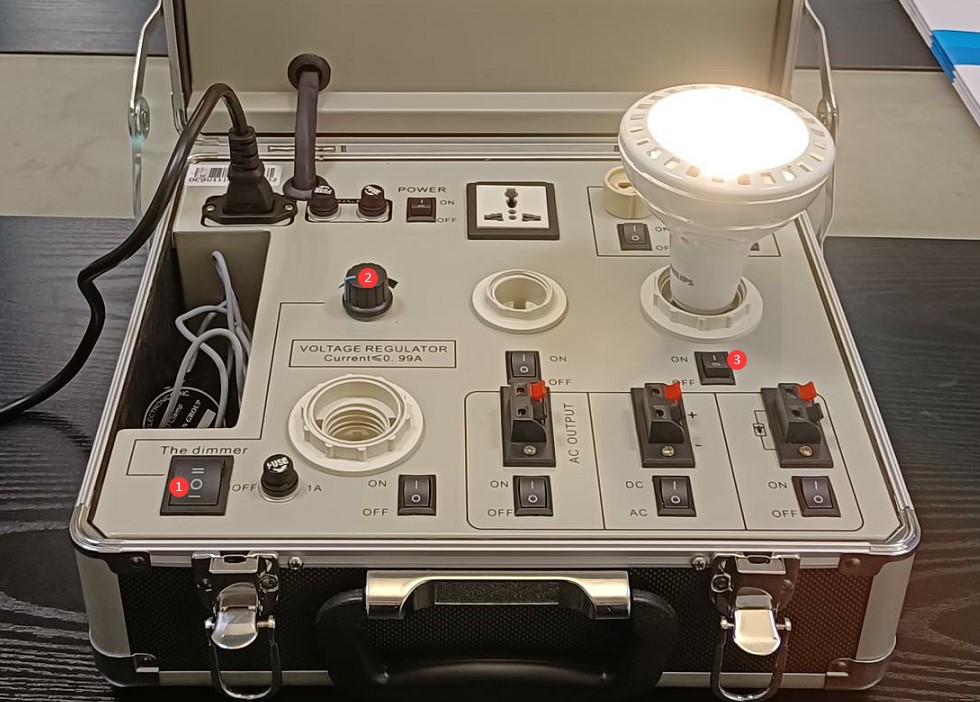

设备电源线同时给设备和样品供电。= 1 * GB3①三档开关用于控制样品电源。上档位为调压器，切换到上档位，则可使用= 2 * GB3②处调压器调节样品输入电压。中档为关，调到中档位以关闭样品输入电源。下档位为直接供电，调到下档位，则直接使用设备输入电源处电压给样品供电。= 3 * GB3③另外每个样品安装处，都有单独的开关以控制该样品的供电。

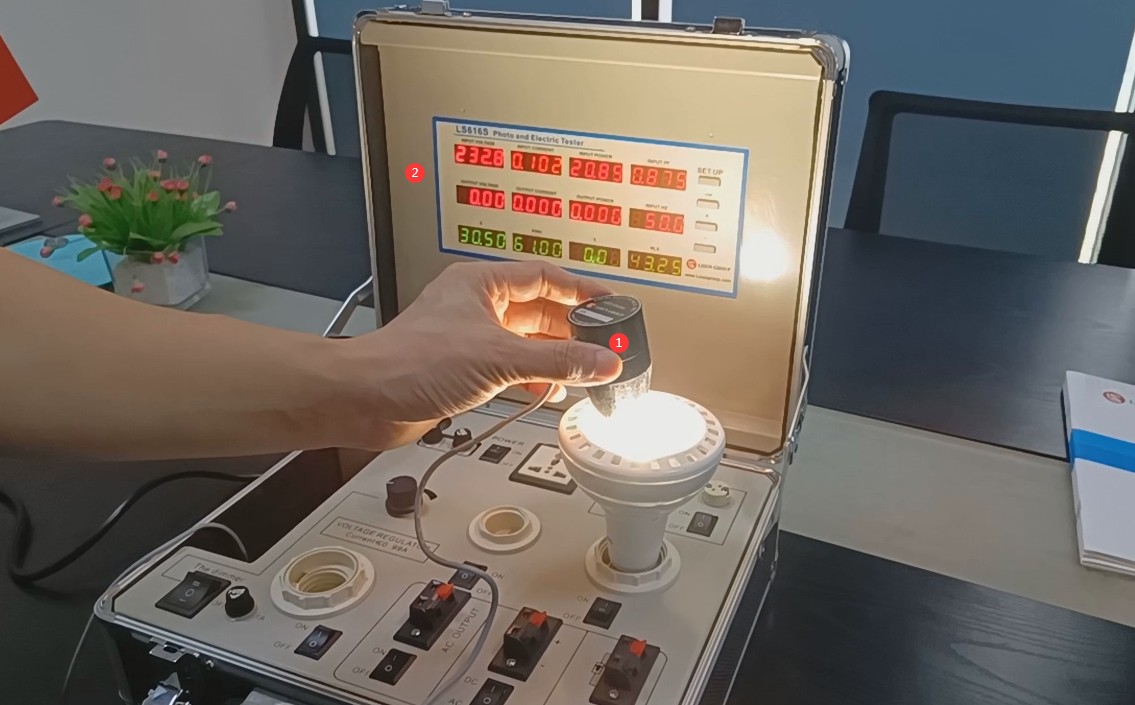

= 1 * GB3①直接使用探头测试所需要的位置的参数即可。= 2 * GB3②所有参数显示在上部显示屏。

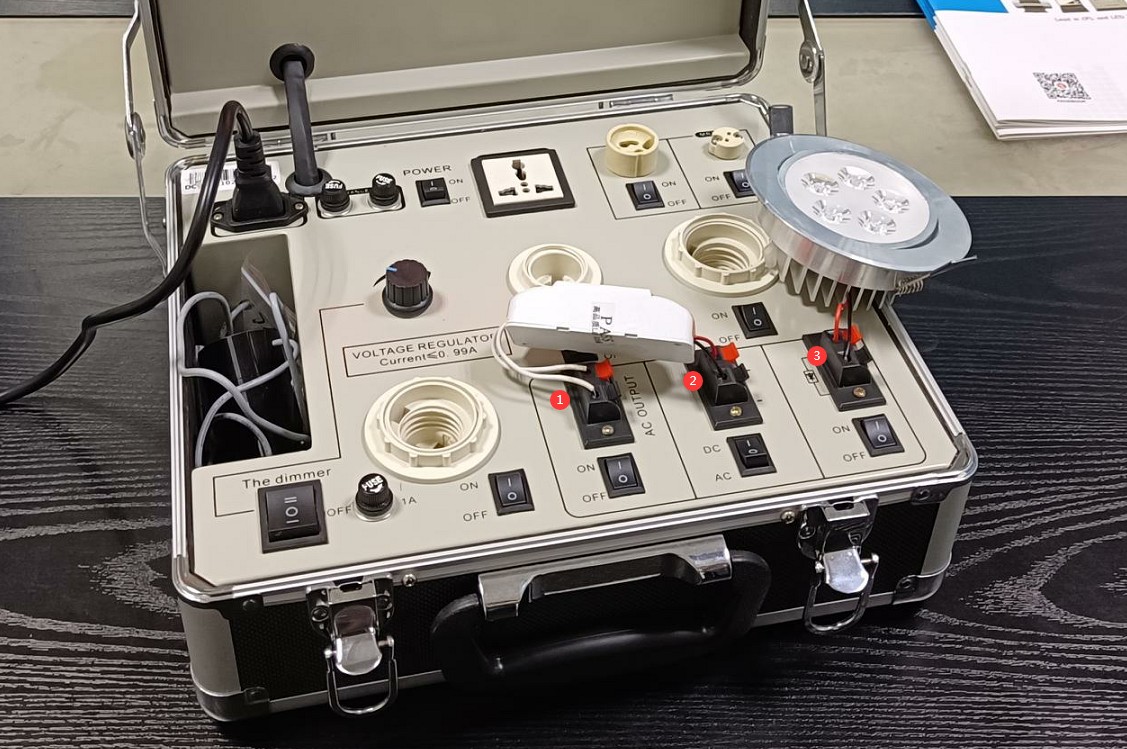

如需要测试LED驱动的输入及输出参数，接线方式如下图。= 1 * GB3①处接LED驱动的AC输入端。= 2 * GB3②处接LED驱动的DC输出端。= 3 * GB3③处接LED光源。注意：= 2 * GB3②= 3 * GB3③正负极不要接错。

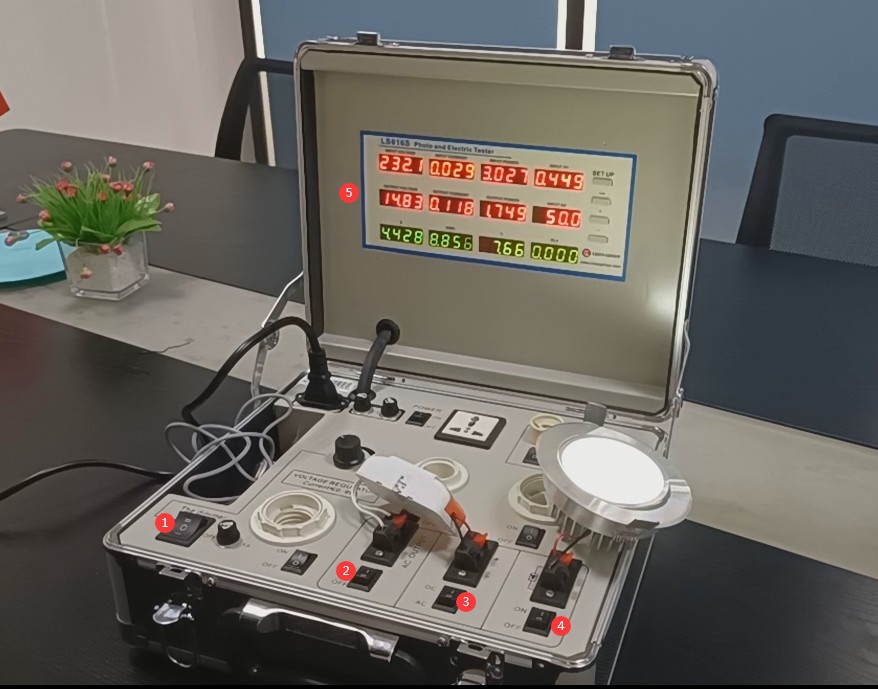

= 1 * GB3①打开三档开关。= 2 * GB3②打开LED驱动输入开关。= 3 * GB3③将此开关切换到DC端。= 4 * GB3④打开LED光源开关。= 5 * GB3⑤即可查看LED驱动的输入及输出参数。
